Installation of LS-VH06 frame angle brackets on the fixed frames

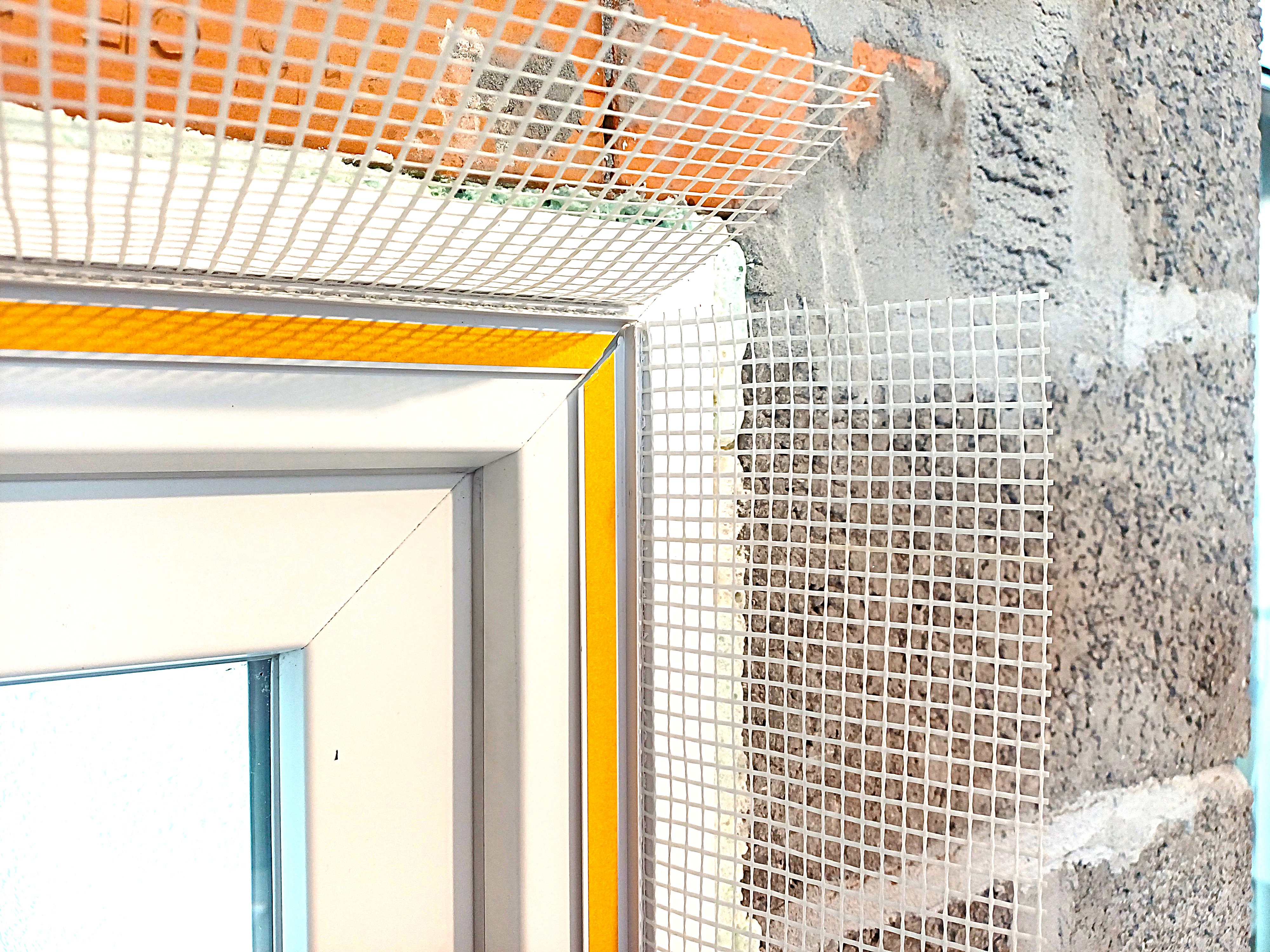

Installation of LS-VH06 frame angle brackets on fixed frames:

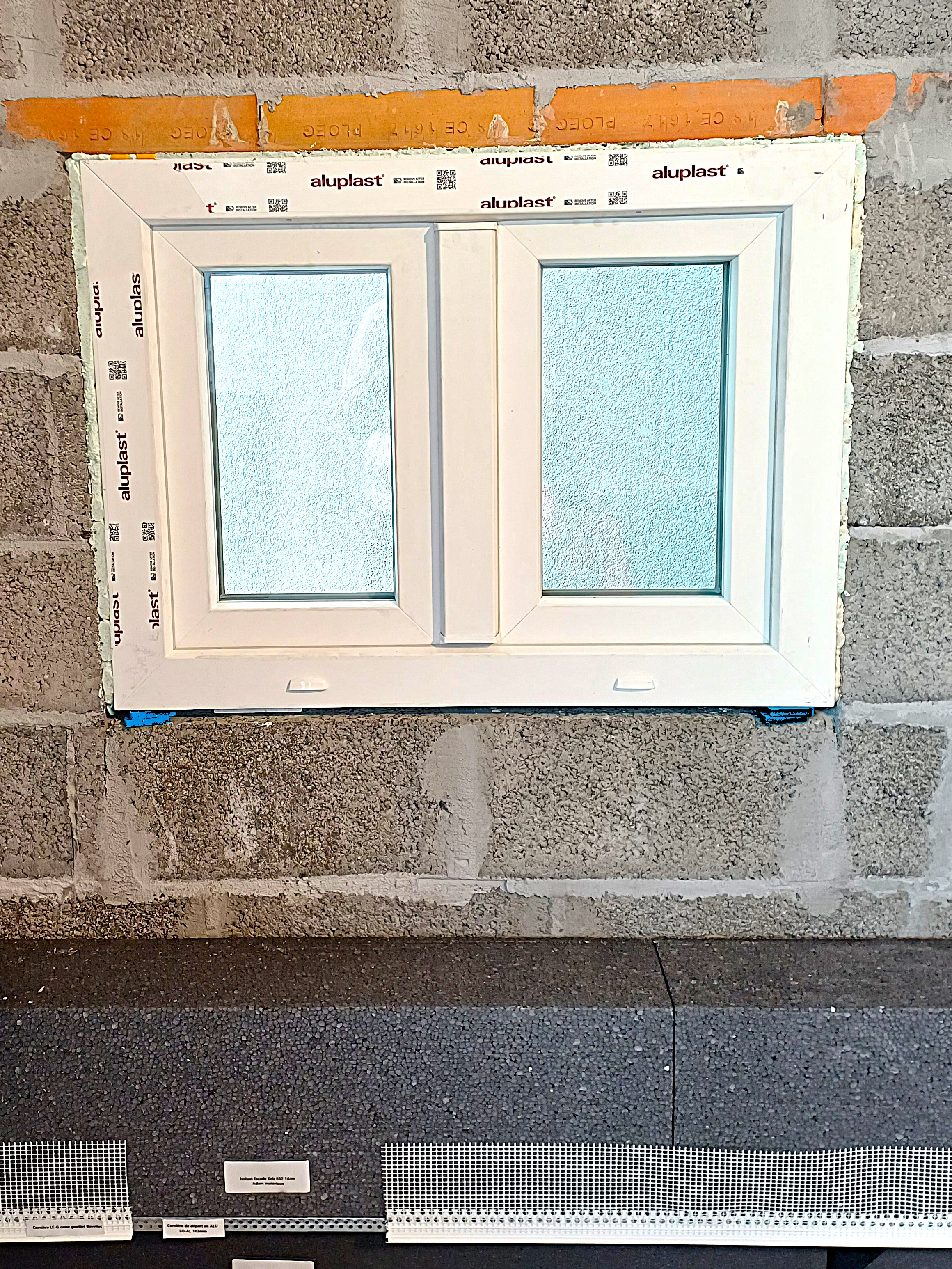

Before installing the LS-VH06 frame corner brackets, the surfaces of the fixed frames must be thoroughly cleaned, dry, and free of dust, dirt, grease, or any other element that could compromise the adhesion of the LS-VH06 frame

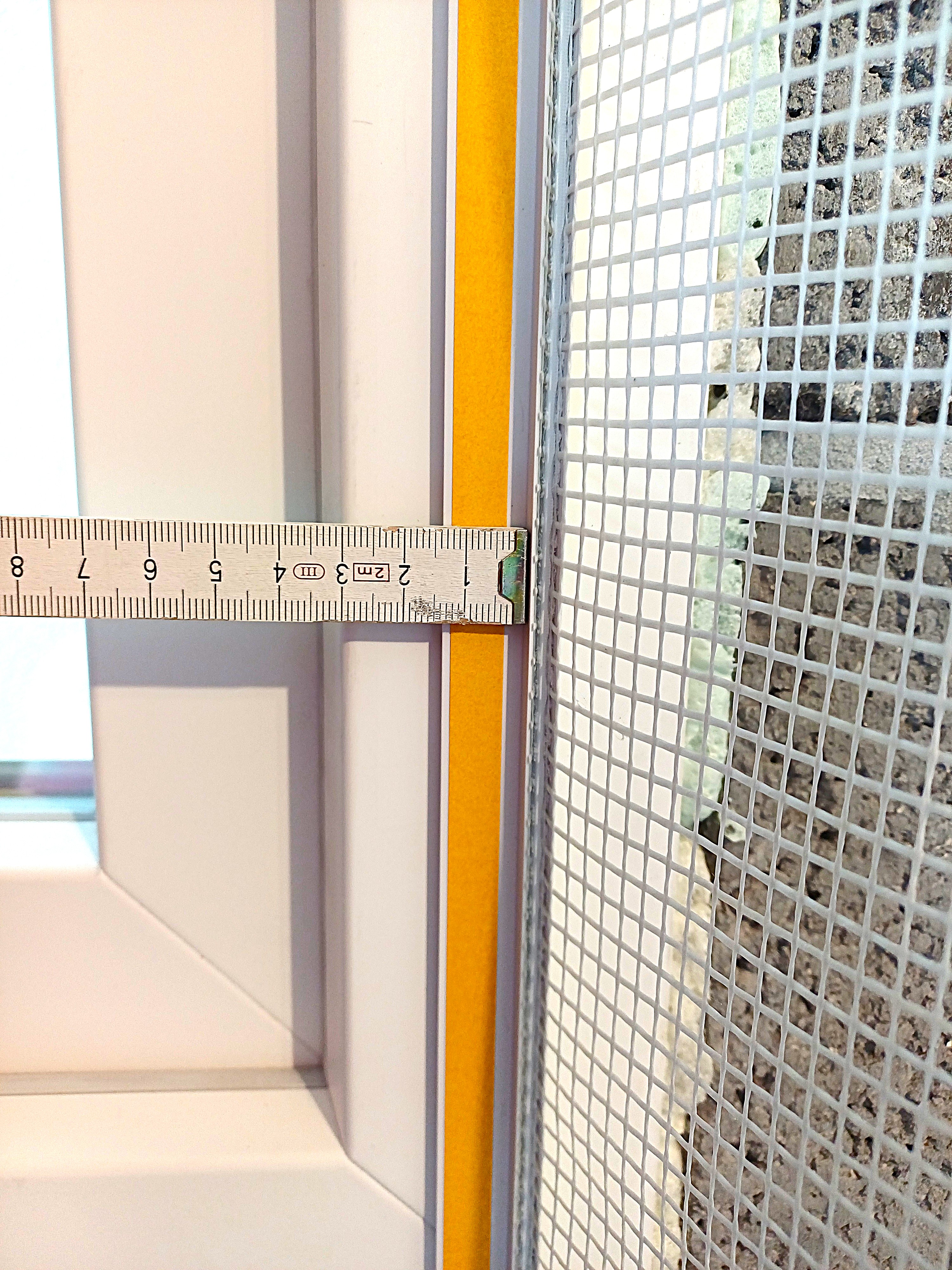

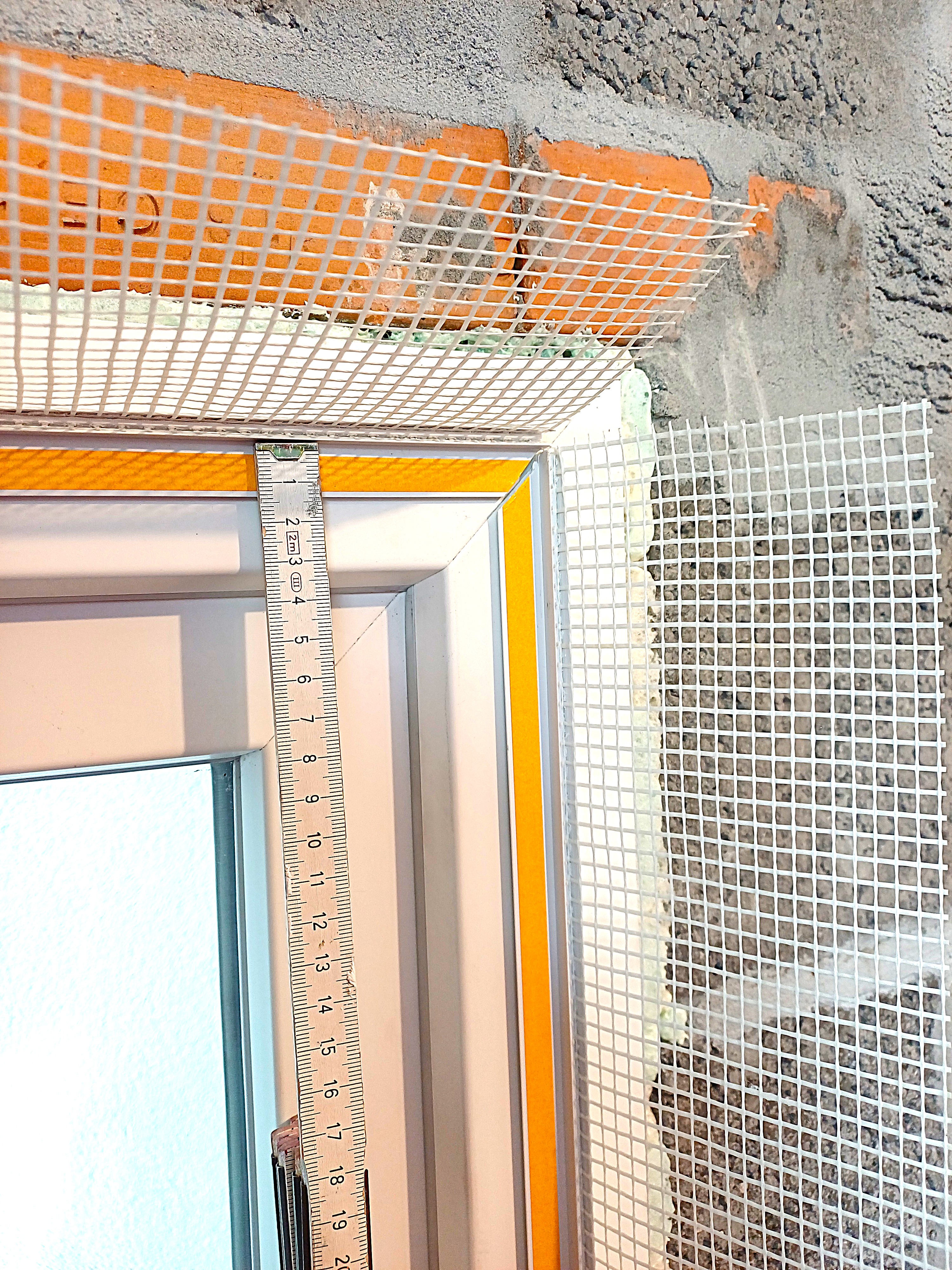

The LS-VH06 are then positioned 30mm from the edges of the fixed frames, respecting the alignment of the frames and the manufacturer's installation instructions, in order to ensure a clean and durable connection between the frames and the Adam Matériaux

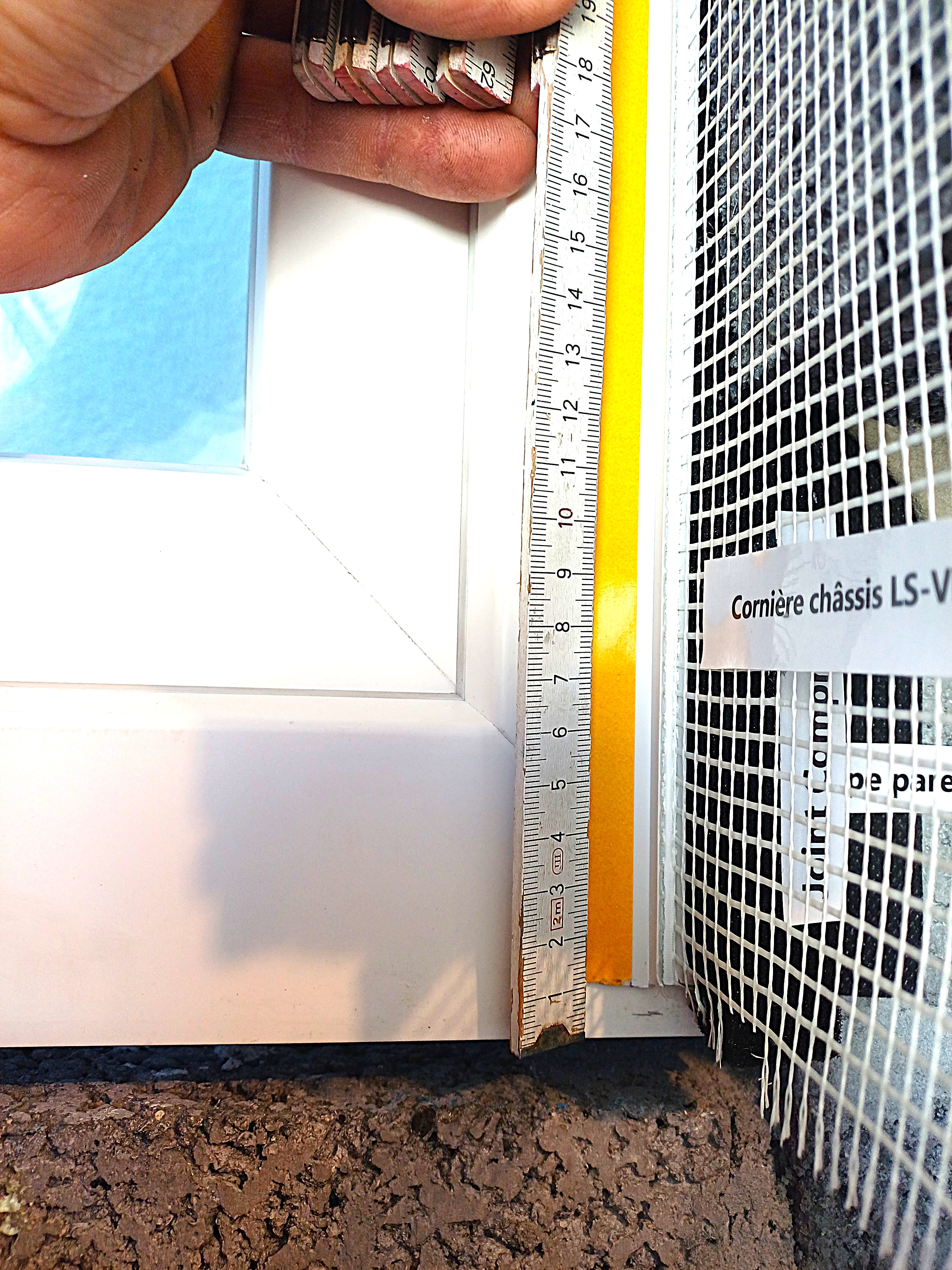

You must stop the LS-VH06 10mm of the frames

This space will be needed to install the PZA aluminum thresholds with the KZ end caps

The adhesive side of the corner brackets must be applied to a clean and sufficiently smooth surface to ensure continuous adhesion along the entire length of the LS-VH06 frame corner brackets. Even pressure should be applied during installation of the LS-VH06 frame corner brackets to guarantee good contact between the brackets and the frame members.

The joints between two lengths of LS-VH06 frame angles must be made cleanly, without creating any excess thickness that could hinder the installation of the Adam Matériaux

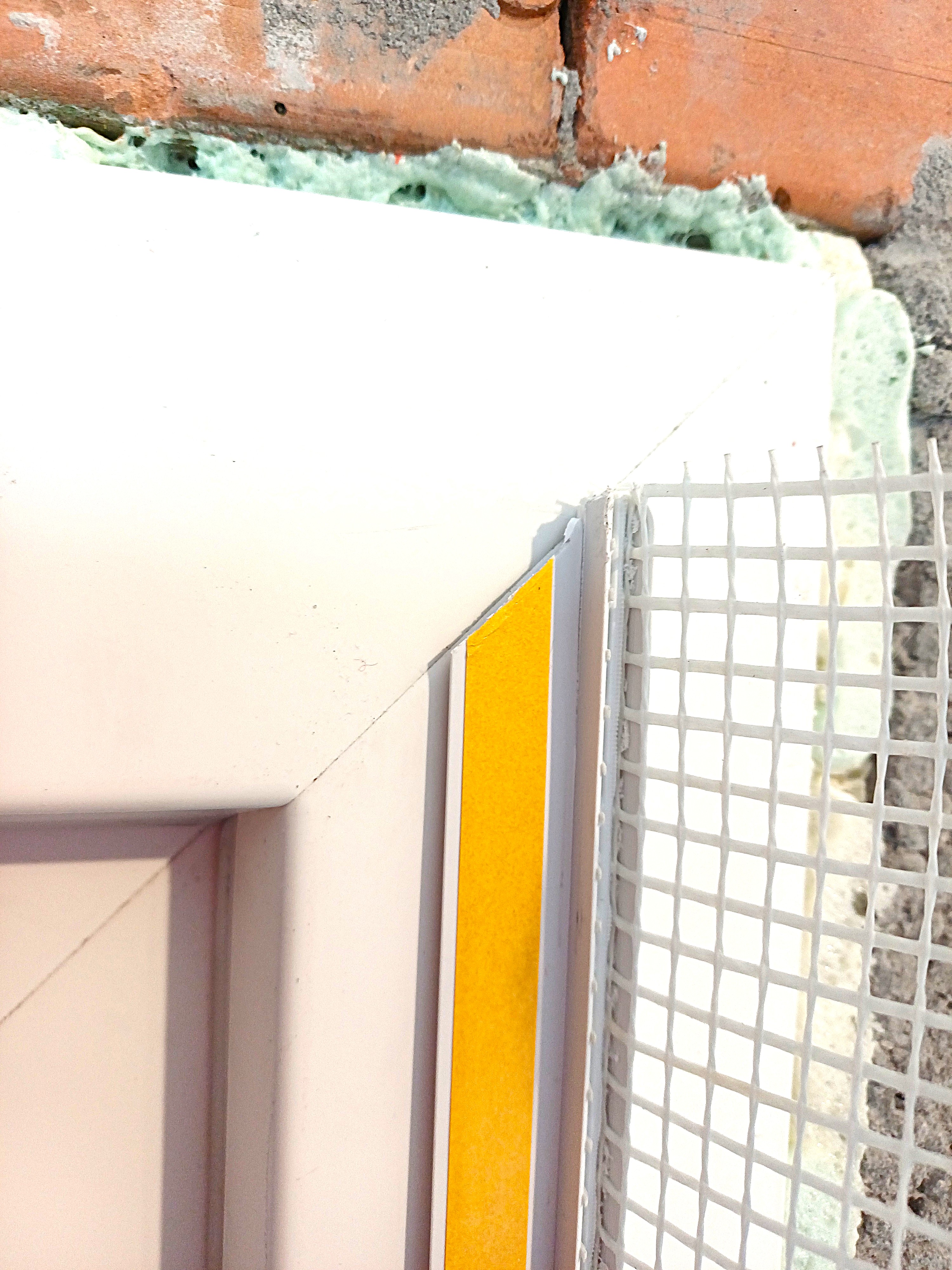

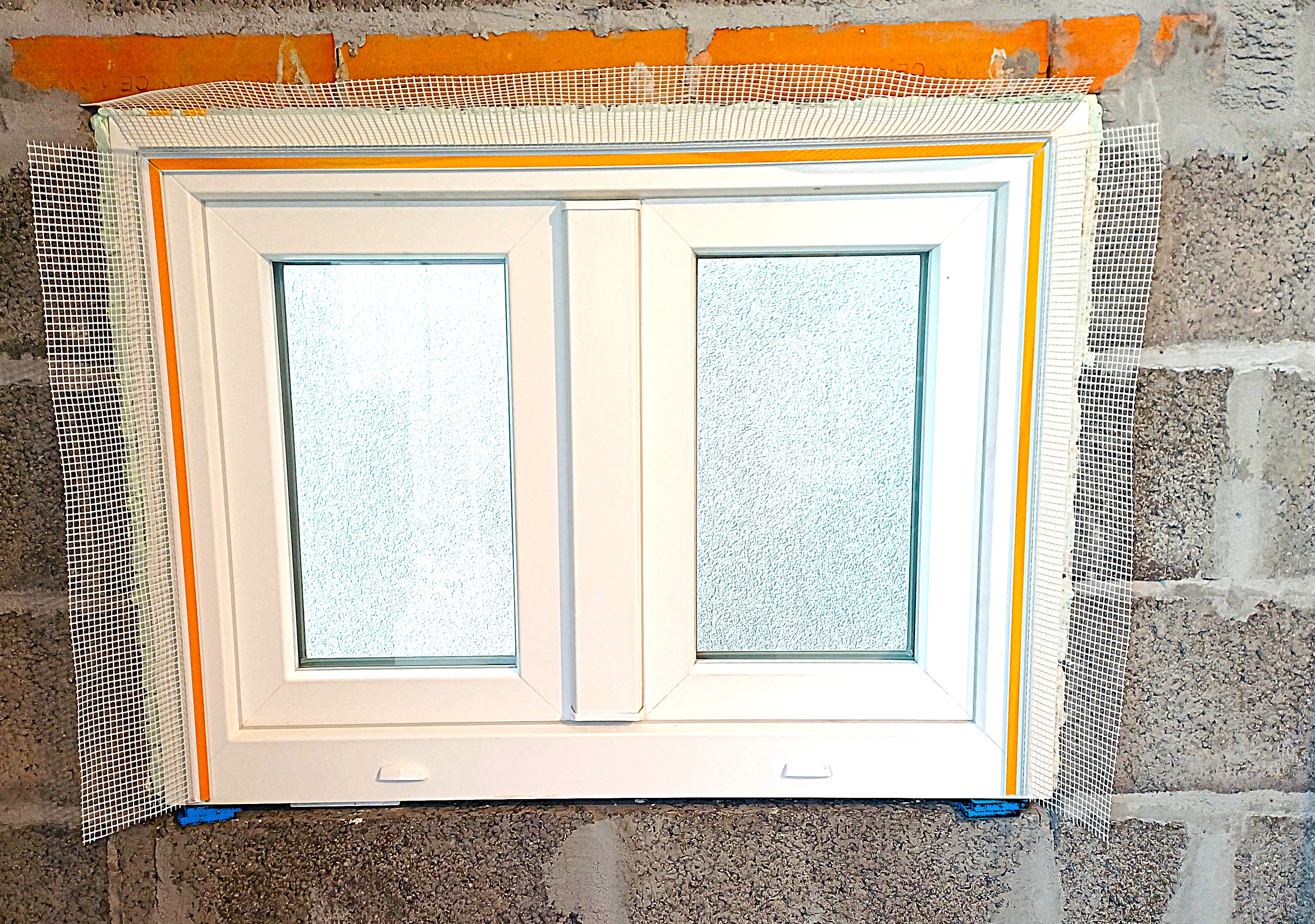

The LS-VH06 frame angles must be installed continuously at the right angles of the relevant parts of the frames, particularly at the level of the uprights and lintels , with careful treatment of the angles.

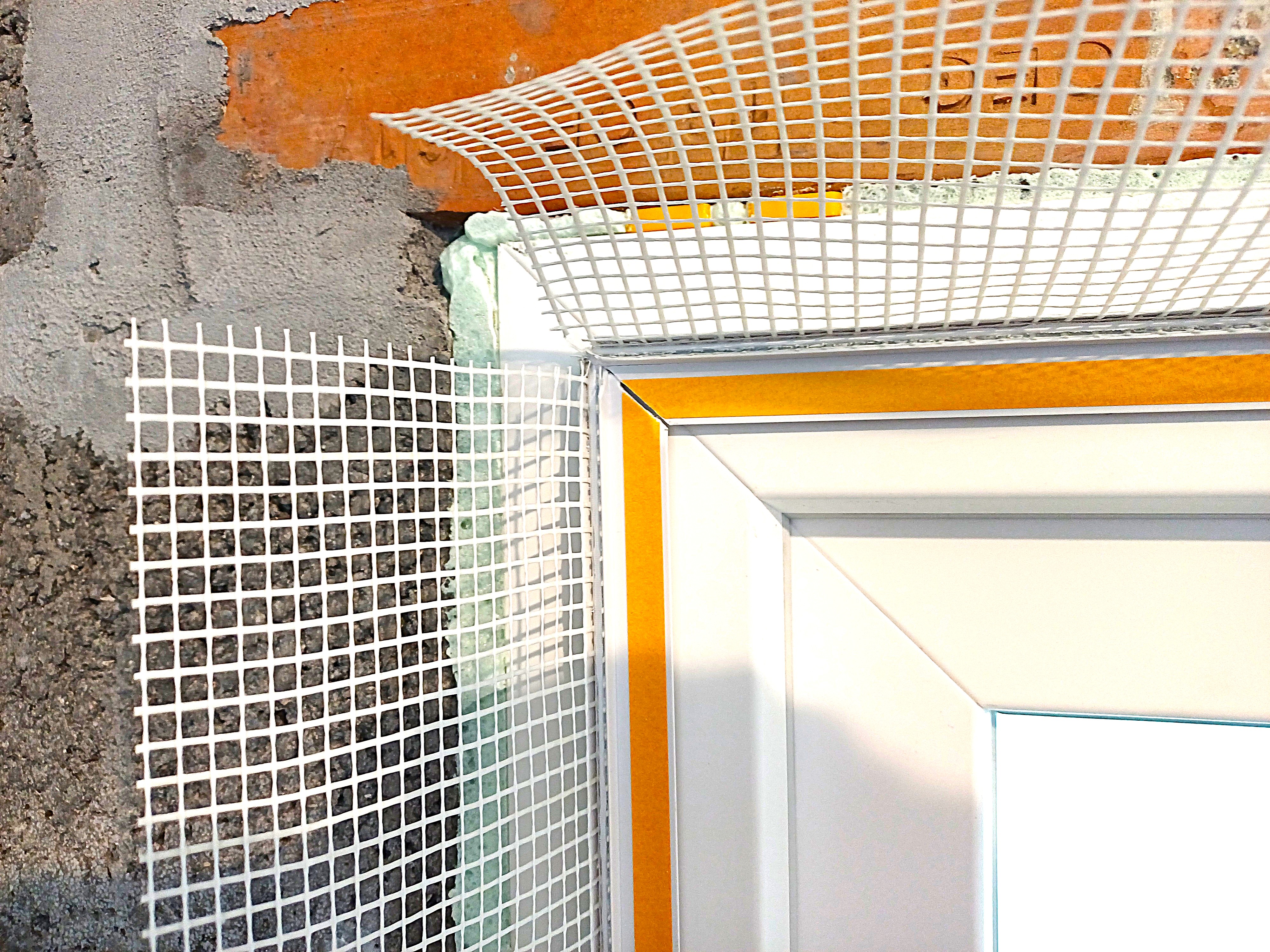

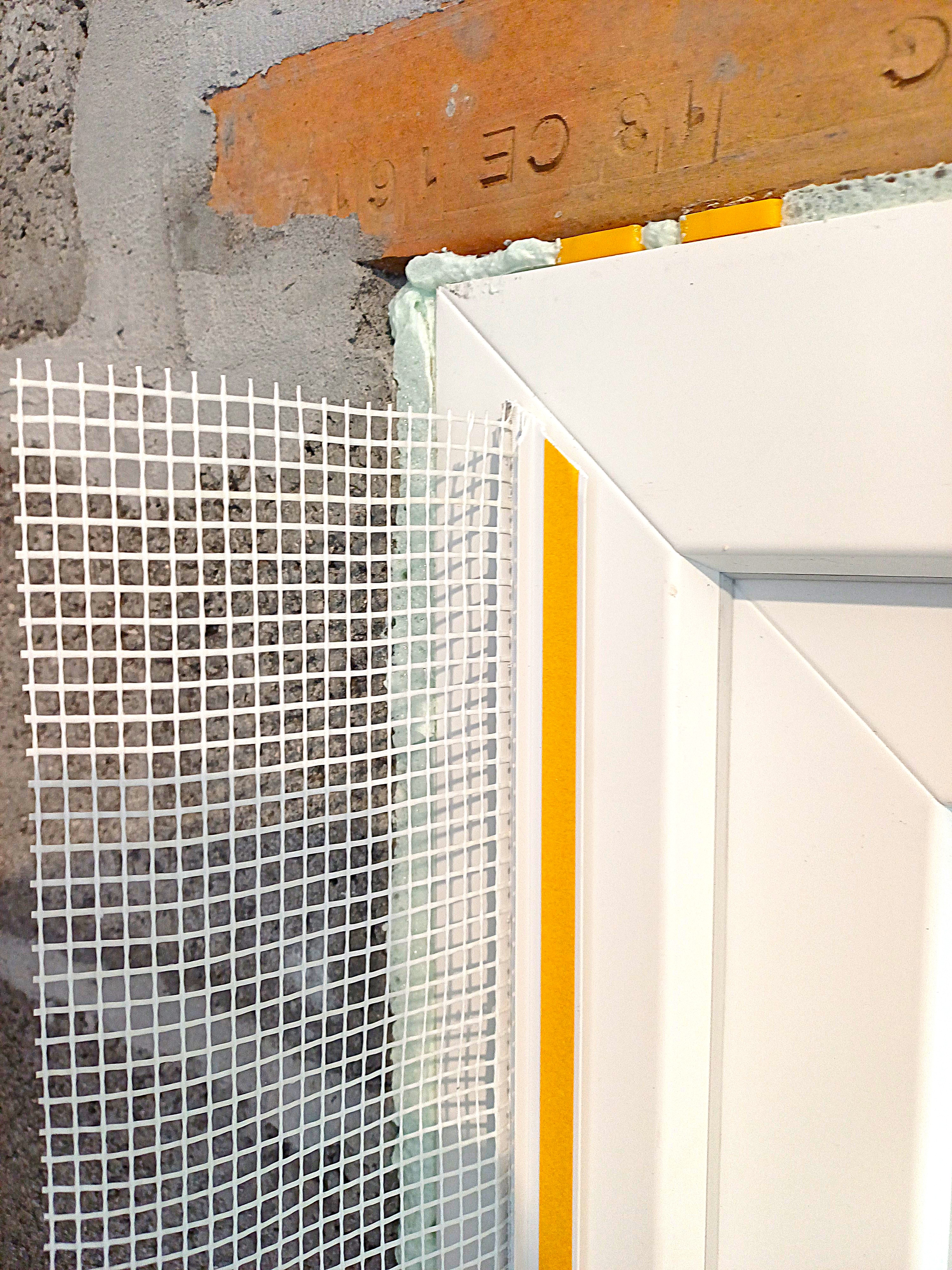

Particular attention will be paid to the corners of the frames in order to avoid any interruption or faulty connection which could later cause cracking or leaks.

After installation, check the adhesion and positioning of the LS-VH06 frame corner brackets before proceeding with the installation of thegraphite EPS Adam Matériaux reinforcement system Adam Matériaux

The entire implementation must be carried out in accordance with the technical specifications of the manufacturer Adam Matériaux , the recommendations relating to LS-VH06 frame angles and the rules of good practice.
